Induction heating power supply
Induction Bearing heating is a device specifically designed for heating metal components such as bearings, utilizing the principle of electromagnetic induction to quickly generate heat and achieve uniform heating. Induction Bearing Heater The working process generates an alternating magnetic field by flowing current through the coil, inducing eddy currents to rapidly heat up the interior of the bearing, making it easy to install, disassemble, or perform subsequent processing. This device has the advantages of fast heating speed, low energy consumption, and safe operation, and is widely used in mechanical manufacturing, maintenance, and industrial production, improving work efficiency and processing quality.
Induction heating power supply application scope

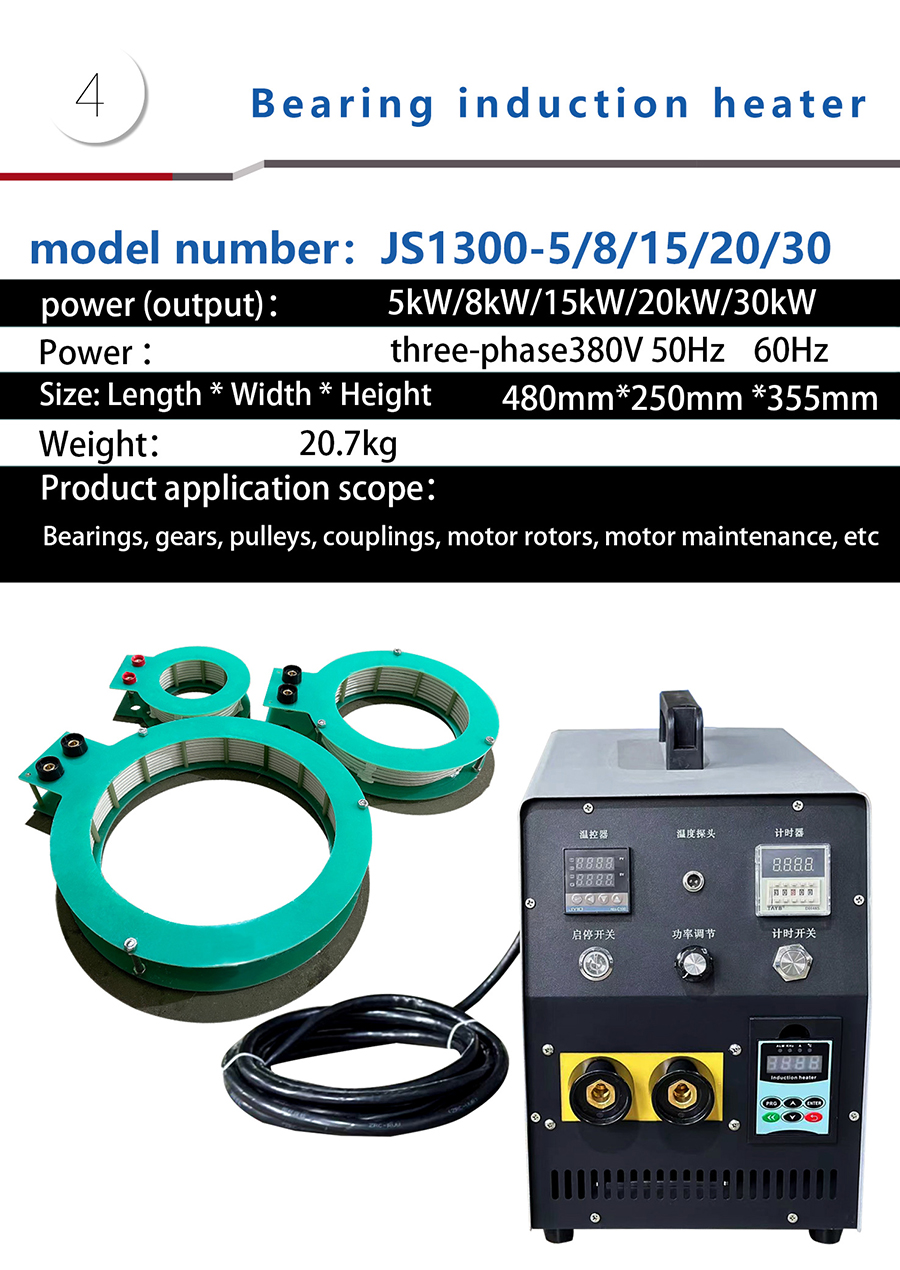

Bearings, gears, pulleys, couplings, motor rotors, motor maintenance, etc
bearing heater parameter performance:
Automatical power regulation and demagnetization;
Environmental protection, no soot pollution;
Save money, save time, save electricity, save oil and improve assembly quality;
Reliable, simple operation, uniform heating, no fire danger;
| No | Item | Data |
| 1 | Power | Three-phase 15KW/20KW/30KW |
| 2 | Rated voltage frequency | AC 380V/50Hz-60Hz |
| 3 | Voltage adaptation range | constant power output at 300 ~ 400V |
| 4 | Adapt to ambient temperature | -20ºC~50ºC |
| 5 | Adapt to environmental humidity | ≤95% |
| 6 | Heat conversion efficiency | ≥95% |
| 7 | Effective power | ≥98%(Can be customized according to user needs) |
| 8 | working frequency | 5~40KHz |
